  1. Components

Traffic mirroring module

PreviousTesting moduleNextRuntime analyzer

Last updated 20 days ago

Was this helpful?

This module processes all the mirrored traffic. From the mirrored traffic, it assembles tcp packets in a sequence. Once it builds the bidirectional TCP connection stream from the mirrored traffic, it extracts HTTP req-resp pairs from the stream. And each such pair is then pushed to Kafka.

  • Dockerhub version: aktosecurity/mirror-api-logging:local (Enterprise only)

  • Interaction: Traffic mirroring module runs as a separate Docker instance. It reads the traffic coming on port 4789 (AWS Traffic mirroring port) and all ports for GCP.

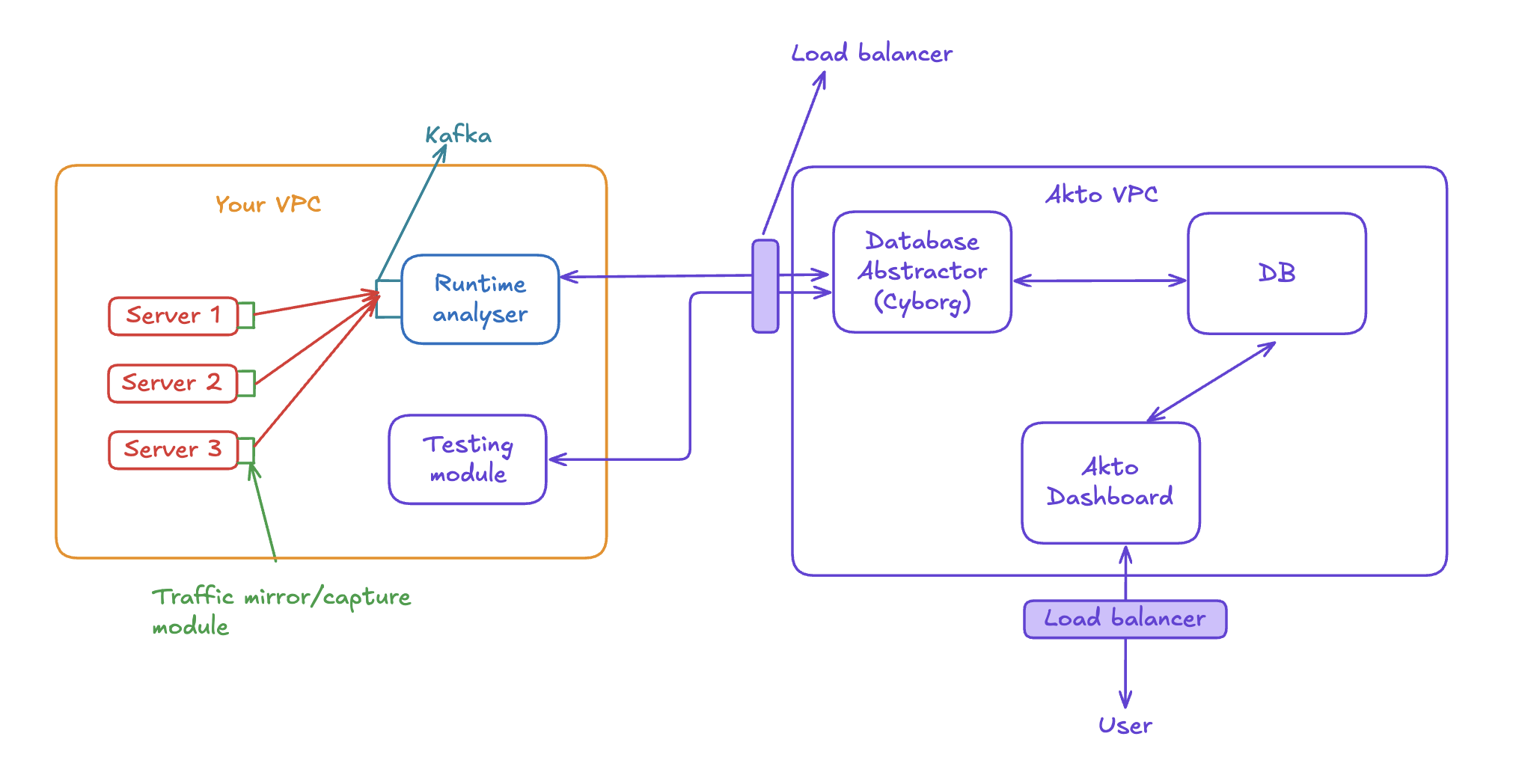

  • Architecture: For enterprises, Traffic mirroring module docker runs on the same instance as Runtime analyzer


What Does It Do?

  • Mirrored Traffic Capture:

    The module ingests mirrored TCP traffic (network packets) from your infrastructure, typically using cloud-native traffic mirroring solutions like AWS VPC Traffic Mirroring or GCP Packet Mirroring.

  • TCP Stream Assembly:

    It assembles TCP packets in sequence, rebuilding full bidirectional TCP streams, which is essential for reconstructing entire HTTP transactions.

  • Request-Response Extraction:

    After reconstructing the streams, the module identifies complete HTTP request-response pairs—whether REST, GraphQL, SOAP, or WebSocket over HTTP.

  • Kafka Integration:

    Each reconstructed request-response pair is pushed to Kafka, making the data available for consumption by other Akto components for security testing, sensitive data detection, and API inventory building.


How It Fits Into Akto's Architecture

  • Traffic Source:

    The module captures mirrored traffic from multiple servers within your infrastructure.

  • Packet Processing:

    It acts as the first line of processing, converting raw TCP traffic into structured HTTP data.

  • Data Pipeline:

    The processed data is streamed to Kafka, where other modules—like the Runtime Analyzer—pick it up for further inspection and action.

This module plays a foundational role in enabling Akto to observe real-world API usage patterns passively and securely.


Why It Matters

  • ✅ Agentless & Non-Intrusive: Monitors traffic without modifying application code or introducing inline components.

  • ✅ Cloud-Optimized: Supports both AWS and GCP traffic mirroring, making it versatile for modern cloud environments.


Summary

The Traffic Mirroring Module is critical for capturing traffic at the network layer, transforming it into actionable data for security analysis. It works silently in the background, powering Akto’s API discovery and security capabilities.
